| 고합금 슈퍼오스테나이트 스테인리스강: | 254SMO, EN 1.4547, UNS S31254 | 제품: | 254SMO 스테인레스 스틸 스트립, 코일, 시트 및 플레이트 |
|---|---|---|---|
| 크기 범위: | 0.1~40mm x 1219mm | 사양: | EN 10088-2, EN 10028-7, ASTM A240/A240M |

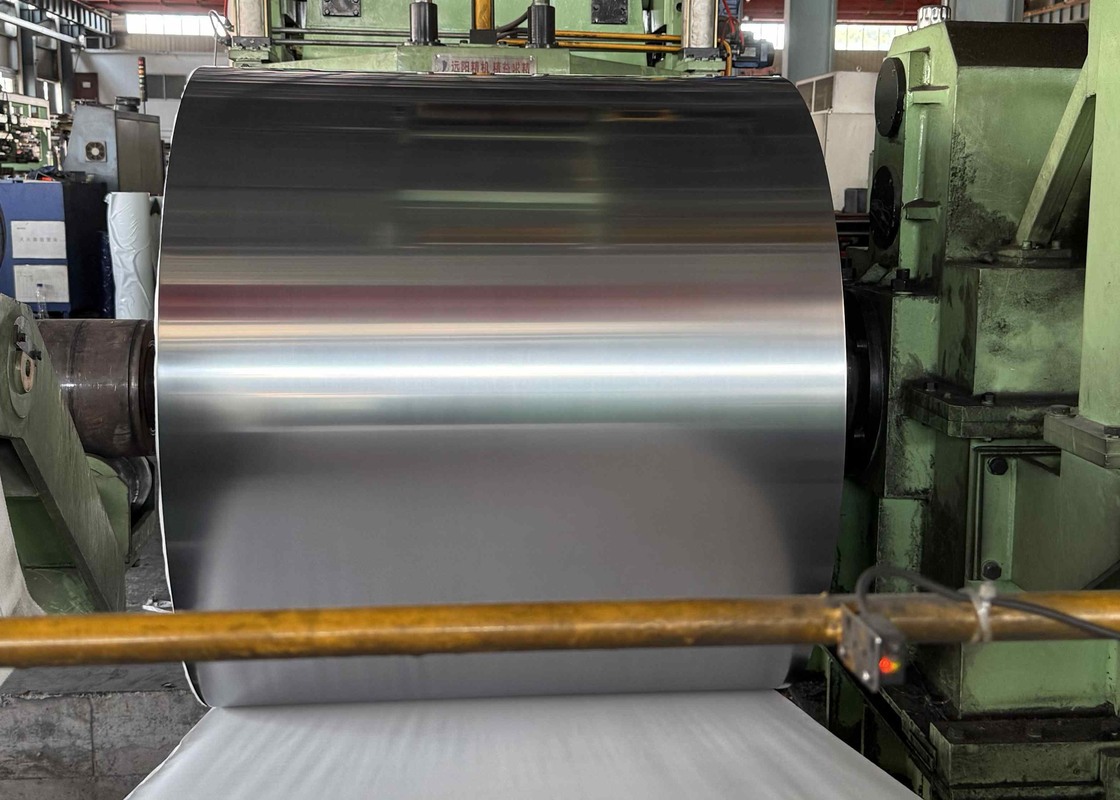

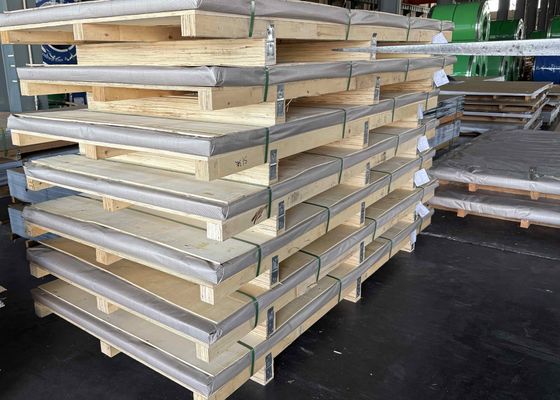

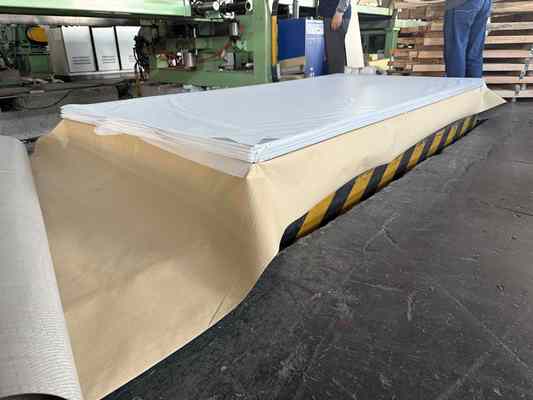

254SMO EN 1.4547 UNS S31254 Stainless Steel Sheet, Strip, And Coil
Alloy 254SMO, EN 1.4547, UNS S31254, a high alloy super austensitic stainless steel with 6% molybdenum,
and nitrogen alloyed material, which obtains extremely good resistance to both uniform and localized corrosion.
254SMO stainless demonstrates outstanding resistance to pitting, crevice corrosion stress cracking,
and corrosion fatigue uniform corrosion, with strength that is twice that of the 300 series stainless steels.
With high levels of chromium, molybdenum, and nitrogen, 254 SMO is frequently used in high chloride
environments, such as brackish water, seawater, pulp mill bleach plants, and other chloride process streams.
For certain applications it has been found to be a more cost-effective substitute for high nickel and titanium alloys.
Pitting Resistance Equivalent (PRE) is calculated using the following formula: PRE = %Cr + 3.3 x %Mo + 16 x %N
PRE value = 43
Chemical composition %
| C | Si | Mn | P | S | Cr | Ni | Mo | N | Cu |
| 0.020 max | 0.70 max | 1.00 max | 0.030 max | 0.010 max | 19.5-20.5 | 17.5-18.5 | 6.00-7.00 | 0.18-0.25 | 0.50-1.00 |
Specifications
EN 10088-2, EN 10028-7
ASTM A240/A240M
Typical applications
industries served, chemical Processing, Food Processing, Oil & Gas, Power Generation, Pharmaceutical
Desalination equipment, Saltwater handling, Flue gas desulfurization, Food processing equipment,
Heat exchangers, Pulp mill bleach systems, and Oil distillation.
Form of supply
254SMO, EN 1.4547, DIN X1CrNiMoCuN20-18-7 , UNS S31254 Stainless steel strip, coil, sheet and plate
